Atex AR950FA Ride On Mower

 High-performance mowers engineered for all-terrain use, built to conquer steep slopes and rugged landscapes. Unit is suited for clearing overgrown areas, maintaining steep hillsides, wet, muddy conditions. Suitable for heavy Vegetation: Cut grass, broom, gorse, and saplings, making them useful for clearing overgrown properties. Works on steep Slopes: Mowing up to 20-degree slopes.

Key Features

• High-Capacity Hydrostatic Transmission
  13CC for powerful drive on steep, challenging slopes.
• Comfortable Adjustable Seat
  For long hours of operation without fatigue.
• Diff Lock
  Enhanced traction on uneven terrain.

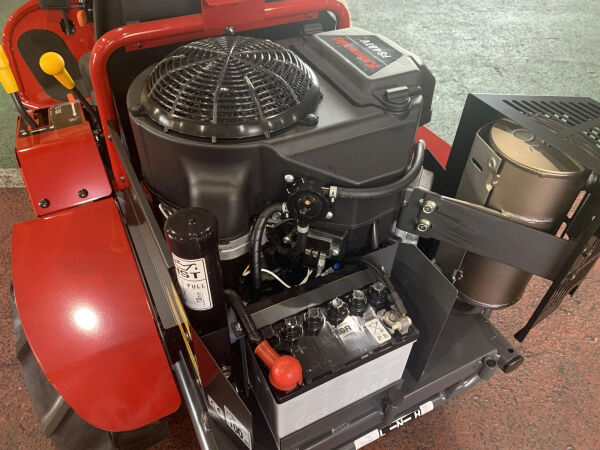

• Kawasaki V-Twin Engine
  Smooth, quiet operation with low fuel consumption.
• Climbing Capability
  Handles slopes up to 25°.
• Fabricated Chassis
  Designed for durability and heavy-duty use.
• Flail Blade Cutting System
  Efficient and precise cutting for demanding applications.
• Heavy-Duty Mowing Decks
  Built to withstand tough conditions.
• Adjustable Steering Wheel
  3-position steering wheel for optimal comfort.
• Underbody Skid Plates
  Protects the mower from rough ground.

• Dimension (L x W x H) (mm)

  1965 X1075 X 955

• Wheelbase (mm)

  1320

• Machine mass (kg)

  360

• Cutting width (mm)

  950

• Cutting height (mm)

  35 to 125

• Cutting blade type X Q'ty

  Free knife x 2 pcs

• Fixing of cutting blade

  Lock Nut Type

• Work clutch

  V Belt (interlocked with brake)

• Driving system

  V-belt (Brake interlock)

• Cutting Width

  38” (950mm)

• Brake

  Internally expanding

• Forward (km/h)

  0-10.0

• Reverse (km/h)

  0-8.5

• Front wheel

  4.00-7（φ400mm)

• Rear wheel

  17Ｘ8.00-8（φ440mm)

• Driving system

  On-Demand 4WD

• Main transmission

  Hydrostatic (13 cc, with Charge Pump)

• Operation

  Pedal, Lever

• Differential lock

  Standard

• Min. turning radius (mm)

  2200

• Max. inclination (°)

  25

• Manufacturer/Model

  KAWASAKI FS 691 V

• Maximum Output

  17.5 / 20.8

• Fuel

  Unleaded gasoline

• Fuel tank capacity (L)

  14 (with Fuel Gauge)

• Seat adjustment

  Forward and Back

• Head light

  LED

• Blade Cover

  Yes

• Hour meter

  Yes

• Oil lamp warning

  Yes

• Towing hook

  Yes
