Gravely

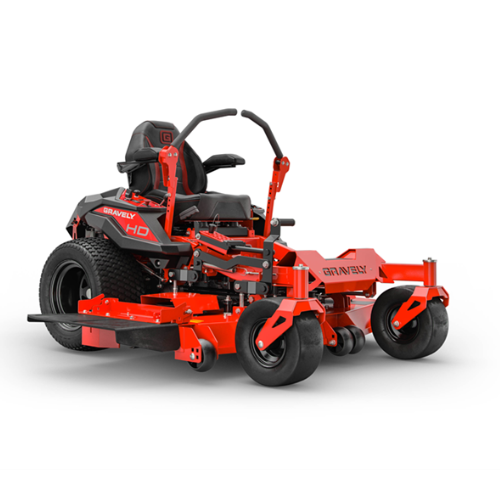

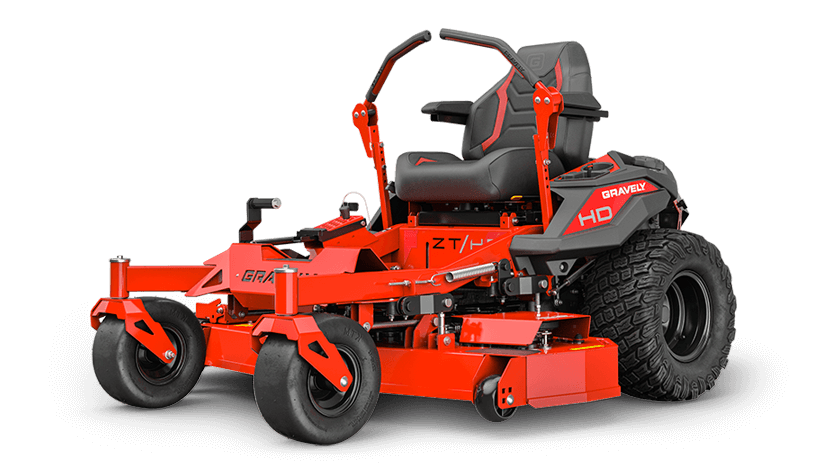

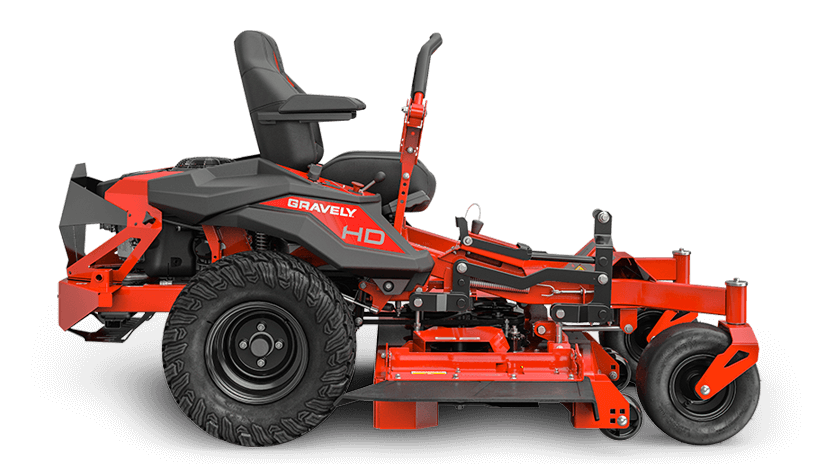

Gravely ZTHD 52" Zero Turn - Kawasaki Engine

Gravely ZTHD 52" Zero Turn - Kawasaki Engine

$18,499.00 NZD
$18,499.00 NZD
Sale Sold out
More style, more comfort, more speed, and more precision have made the ZT HD one of the top selling machines in its class. Built to commercial standards for power and durability encompassing a fabricated X-Factor® 3 52" cutting deck ensuring a premium performance.
  • Powerful engine - Kawasaki® FR Series engines deliver all the power that you'll ever need.
  • Fully welded tubular frame - The ZT HD offers a superior and more robust welded tubular frame, giving you the integrity of a commercial frame in a residential package.
  • Seating and riding comfort - The 55cm high back seat with padded armrests, is mounted on a taller seat base to make it easier to stand up and sit down.
  • Hydro-Gear® ZT-3100 Transaxles - Reliable, commercial grade transaxles deliver the speed and torque to get your mowing done quickly. Easy servicing for more longevity.
  • Constant Belt Tension System (CBT) - minimizes wear and heat while providing enhanced belt life with minimal adjustments.
  • Vertical cut height system - takes the guesswork out of height adjustment with its magnetic pin and clear visibility. 15 cutting positions, ranging from 38mm to 127mm.
  • New Gravely custom moulded handgrips not only give the HD a style upgrade, but also provides extra grip comfort during the long hours of mowing.
  • Machine Warranty - 4 Years or 500 Hours
  • Engine Kawasaki® FR691V
    Horsepower 23
    Engine Displacement 44.3 in / 726 cc
    Fuel Capacity 5.1 gal / 19.3 ltr
    Drive System Hydro-Gear® ZT-3100® Transaxles
    Transmission Type Hydrostatic
    Brake Type Lever Activated Parking
    Driver Position Sit
    Ground Speed Forward 8 mph / 12.9 kph
    Ground Speed Reverse 4 mph / 6.4 kph
    Wheels Front 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
    Wheels Rear 22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm)
    Electric
    Battery Capacity 190 CCA
    Number of Batteries 1
    Battery Voltage 12
    Battery Type AGM
    Battery Size U1 Compatible
    Deck
    Deck Size 52 in / 132.1 cm
    Coverage Hour 4.2 acres / 1.7 hectares
    Spindle Type Mechanical
    Deck Material 7 ga
    Deck Construction Fabricated X-Factor® 3
    Discharge Configuration Side
    Cutting Height Min 1.5 in / 3.8 cm
    Cutting Height Max 5 in / 12.7 cm
    Cutting Width 52 in / 132.1 cm
    Dimensions
    Weight (assembled) 817 lb
    Length 79 in / 200.7 cm
    Width (Chute Up) 56.2 in / 142.7 cm
    Width (Chute Down) 67.3 in / 170.9 cm
